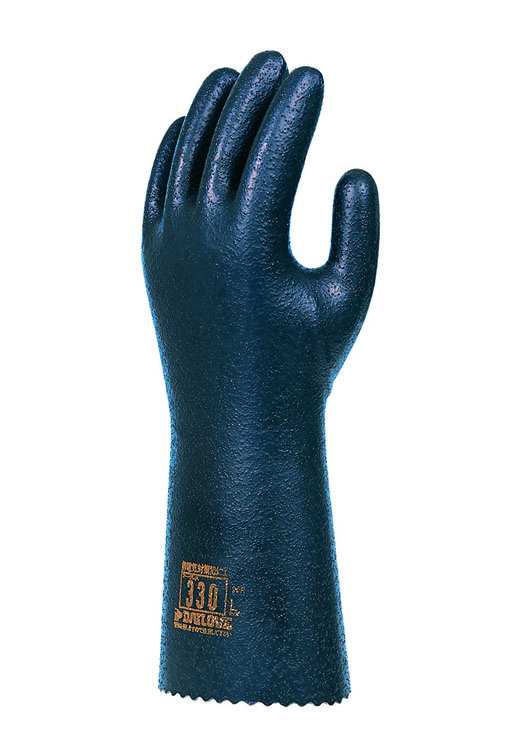

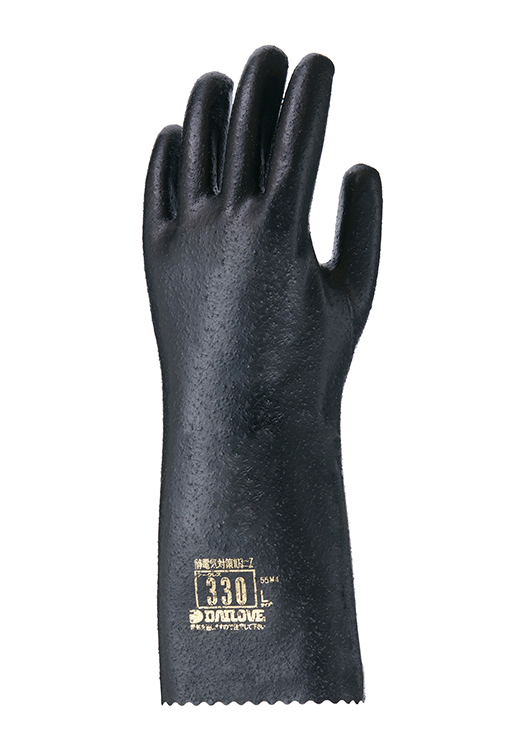

PRODUCTS DAILOVE 330 |
33cm type of DAILOVE 300．
○Gloves that combines ESD protection
○Electrical resistance value is103-107Ω
○Excellent mechanical strength．
○There are solvent resistance．
＊In gloves single， static electricity measures impossible． Clothes， shoes， when you use the Static Control Products relates to a floor gloves effective match．
Because of the long overall length than DAILOVE 300， a high level of safety in the solvent of scattering and the like．
Using a special urethane rubber which gave conductivity． Possible countermeasure against static electricity．
By missing on the ground through a glove， removing the static electricity accumulated in the contact material．
Example of use
○Work and dealing with a flammable solvent， Suitable for use in the field you are affected by the static electricity．
○Wiping of dirt， such as printing equipment．
○Shatterproof when handling solvents．
○Shatterproof of the solvent in the coating industry．
○Handling of products that hate the generation of static electricity， such as a semiconductor．
○Tasks that you need to immerse the hand in a solvent parts washing or the like．
Static electricity
Printing
Precision machinery
Machine
Shatter-proof
Oil
Dipping
information
-
Ambient temperature
Normal temperature
-
Material
Polyurethane
-
Primary use
Machine parts cleaning
Work in the solvent
Shatterproof solvent
Safety measure
Immersed in disinfectant -
Category classification
Electro-static Discharge and Solvent
-
Material
Surface：Polyurethane
lining：Cotton100%＋Conduction -
type
-
-
size
Ｌ：330㎜
Lw：330㎜
XL：330㎜ -
The thickness
1．05㎜
-
Caliber
-
-
Surface shape
Particle
-
color
black
-
Price / double
¥3，100
-
Packaging
bag：1Phase
Inner box：10Phase
Outer case：10Phase×5box

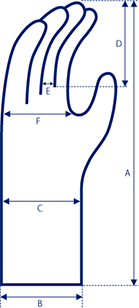

Product dimension
| size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| L | 330 | 151 | 119 | 79 | 40 | 117 |
| Lw | 330 | 149 | 122 | 81 | 40 | 119 |
| LL | 330 | 156 | 125 | 84 | 41 | 132 |
■F shows around the palm of the hand．
■E the thickness of the fingers． Near the center of the finger．
■B， C， E， the dimensions of the F numerical was flattened to the site．
■may vary with the above dimensions for improvement．
■Unit (mm) Display
support
Related information
Notes on use
■Only gloves there is no effect of the ground wire. It requires comprehensive static measures, including clothes, shoes, floor and the like. Not used in a state where the glove is insulated.
■If it is swollen with an organic solvent or the like, since the general resistance value tends to fluctuate attention.
■Because of the risk of ignition, do not close the gloves on fire after handling flammable substances.
■Because of the risk of electric shock, do not use the electrical work.
■Solvents and chemicals that can be dealt with by product is different. SDS of solvents and chemicals used the (safety data sheet) to check the ingredients. To confirm whether or not to use in the service agent area swelling capacity table.
■Our test data is at room temperature, test data in a single solvent. By the environment and the work that you want to use, performance will vary.
■Since the specifications for the service agent, in the case of heat-resistant to ensure subjected to a heat-resistant measures.
